KONFIGURASI JARINGAN PERUSAHAAN XYZ DENGAN MENGGUNAKAN CISCO PACKET TRACER - ADMINISTRASI JARINGAN



KONFIGURASI JARINGAN PERUSAHAAN XYZ
DENGAN MENGGUNAKAN CISCO PACKET TRACER - ADMINISTRASI JARINGAN

Perangkat yang digunakan :

Router 2621XM, Switch 2950-24, Switch 2960-24, Wireless WRT300N, PC dan Laptop.



Langkah Konfigurasi :

1. Router Kantor 1

Konfigurasinya :

Router>enable

Router#configure terminal

Router(config)#hostname K01

K01(config)#int fa0/1

K01(config-if)#ip address 192.168.1.254 255.255.255.224

K01(config-if)#no shutdown

K01(config-if)#exit

K01(config)#ip dhcp pool K01

K01(dhcp-config)#default-router 192.168.1.254

K01(dhcp-config)#network 192.168.1.224 255.255.255.224

K01(dhcp-config)#exit

K01(config)#ip dhcp excluded-address 192.168.1.254

K01(config)#int se1/1

K01(config-if)#ip address 30.30.30.1 255.255.255.252

K01(config-if)#no shutdown

K01(config-if)#exit

K01(config)#int se1/0

K01(config-if)#ip address 10.10.10.1 255.255.255.252

K01(config-if)#no shutdown

K01(config-if)#exit

K01(config)#router rip

K01(config-router)#net 30.30.30.0

K01(config-router)#net 192.168.1.224

K01(config-router)#net 10.10.10.0

K01(config-router)#no auto-summary

K01(config-router)#exit

K01(config)#



2. Router Kantor 2

Konfigurasinya :

Router>enable
Router#configure terminal
Router(config)#hostname K02
K02(config)#int fa0/1
K02(config-if)#ip address 192.168.2.1 255.255.255.224
K02(config-if)#no shutdown
K02(config-if)#exit
K02(config)#ip dhcp pool K02
K02(dhcp-config)#default-router 192.168.2.1
K02(dhcp-config)#network 192.168.2.0 255.255.255.224
K02(dhcp-config)#exit
K02(config)#ip dhcp excluded-address 192.168.2.1
K02(config)#int se1/1
K02(config-if)#ip address 20.20.20.2 255.255.255.252
K02(config-if)#no shutdown
K02(config-if)#exit
K02(config)#int se1/0
K02(config-if)#ip address 10.10.10.2 255.255.255.252
K02(config-if)#no shutdown
K02(config-if)#exit
K02(config)#router rip
K02(config-router)#net 20.20.20.0
K02(config-router)#net 192.168.2.0
K02(config-router)#net 10.10.10.0
K02(config-router)#no auto-summary
K02(config-router)#exit
K02(config)#

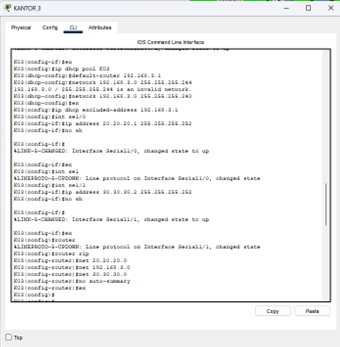

3.Router Kantor 3

Konfigurasinya :

Router>enable

Router#configure terminal

Router(config)#hostname K03

K03(config)#int fa0/1

K03(config-if)#ip address 192.168.3.1 255.255.255.240

K03(config-if)#no shutdown

K03(config-if)#exit

K03(config)#ip dhcp pool K03

K03(dhcp-config)#default-router 192.168.3.1

K03(dhcp-config)#network 192.168.3.0 255.255.255.240

K03(dhcp-config)#exit

K03(config)#ip dhcp excluded-address 192.168.3.1

K03(config)#int se1/0

K03(config-if)#ip address 20.20.20.1 255.255.255.252

K03(config-if)#no shutdown

K03(config-if)#exit

K03(config)#int se1/1

K03(config-if)#ip address 30.30.30.2 255.255.255.252

K03(config-if)#no shutdown

K03(config-if)#exit

K03(config)#router rip

K03(config-router)#net 20.20.20.0

K03(config-router)#net 192.168.3.0

K03(config-router)#net 30.30.30.0

K03(config-router)#no auto-summary

K03(config-router)#exit

K03(config)#



4.   Wireless Router

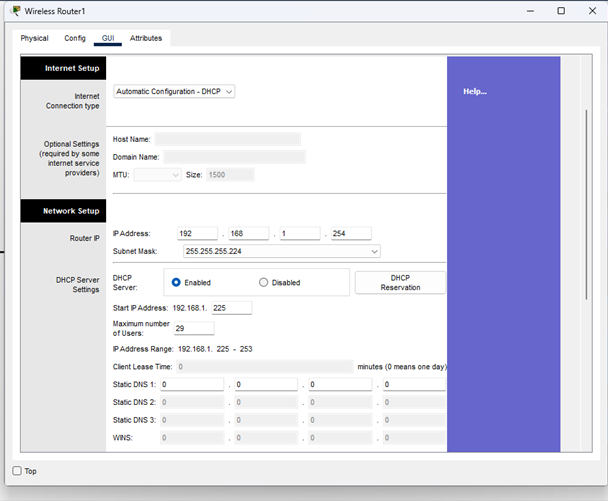

Pastikan setelah menyetting wirelles tersebut, kemudian pilih "Save Setting"

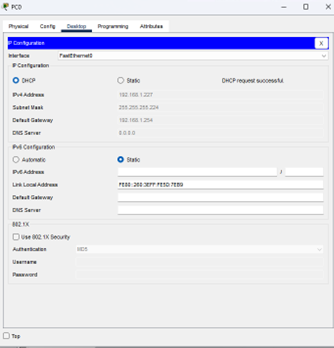

Setelah melakukan konfigurasi pada router dan wireless route pastikan semua PC atau laptop mendapatkan IP secara DHCP.



Uji Koneksi Jaringan Antar Kantor

Uji koneksi Kantor 1 ke Kantor 2

Uji koneksi Kantor 1 ke Kantor 3

Uji Koneksi PC ke PC kantor 1

Uji Koneksi LAPTOP ke PC

Nama        : Abdul Aziz Nurhakim

NIM          : 13210007
